Description
Get real spatial sound in seconds

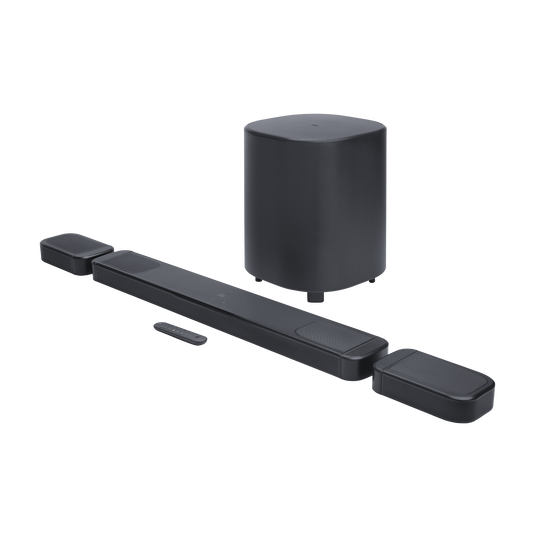

Real spatial sound—the kind that fills your space from floor to ceiling with true Dolby Atmos® and DTS:X height effects—can be yours in seconds. Just pick up the detachable wireless speakers from either end of the JBL BAR 1000MK2 soundbar and place them behind where you’re sitting. That’s it. While you’re pulled into the center of the action, you’ll enjoy deep, punchy bass from a 10″ subwoofer and MultiBeam™ 3.0 for the widest, most cinematic soundstage. If you need to step out of the room while you’re catching up with your favorite video podcast or enjoying your go-to streaming playlist on your TV, take one of the wireless speakers along and you won’t have to miss a thing. JBL can do this because our speakers are trusted in cinemas, recording studios, and concert halls. And this immersive sound experience works seamlessly with all TV brands. Enjoy the freedom of unbound cinematic sound.
General Specifications
- Sound system
- 7.1.4 channel
- Power supply
- 100 – 240V AC, ~ 50/60Hz
- Total speaker power output* (Max. @THD 1%)
- 960 W RMS
- Soundbar output power** (Max. @THD 1%)
- 250 W RMS
- Surround speaker output power*** (Max. @THD 1%)
- 2x 40 W RMS
- Subwoofer output power**** (Max. @THD 1%)
- 550 W RMS
- Soundbar transducer
- 6x (44×80)mm racetrack drivers, 2x 1″ (25mm) tweeters, 2x 2.75″ (70mm) up-firing full-range drivers
- Surround speaker transducer
- 2x (44×90)mm racetrack drivers, 2x 2.75″ (70mm) up-firing full-range drivers
- Subwoofer transducer
- 10” (260mm)
- Networked standby power
- < 2.0 W
- Operating temperature
- 0°C – 45 °C
- Lithium battery
- 3.635V, 6600mAh
- Detachable surround speaker playtime
- up to 10 hours (may vary according to content type and volume level)
Audio Specifications
- Frequency response
- 33Hz – 20kHz (-6dB)
- Audio inputs
- Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)
Dimensions
- Total soundbar dimensions (W x H x D)
- 1203 x 52x 128mm / 47.4″ x 2.0″ x 5.0″
- Soundbar dimensions (W x H x D)
- 854 x 52 x 128mm / 33.6″ x 2.0″ x 5.0″
- Detachable surround speaker dimensions (each) (W x H x D)
- 189x 52 x 128mm / 7.4″ x 2.0″ x 5.0″
- Subwoofer dimensions (W x H x D):
- 325 x 400 x 325 mm / 12.8″ x 15.7″ x 12.8″
- Soundbar weight
- 5.5kg / 12.1 lbs
- Detachable surround speaker weight (each)
- 0.9 kg / 2 lbs
- Subwoofer weight
- 9.1 kg / 20 lbs
- Packaging dimensions (W x H x D)
- 980 x 398 x 495 mm / 38.58″ x 15.67″ x 19.49″
- Packaging Weight
- 22.6kg / 49.8lbs (EMEA/UK/AU/NZ);19.9kg / 44.4lbs (Others)
Control and Connection Specifications
- USB port
- Type A
- USB rating
- 5V DC, 0.5A
- Supporting file formats
- mp3
- MP3 codec
- MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
- MP3 sampling rate
- 16 – 48 kHz
- MP3 bitrate
- 80 – 320 kbps
- Bluetooth version
- v5.3
- Bluetooth profile
- A2DP v1.3, AVRCP v1.5
- Bluetooth transmitter frequency range
- 2400 MHz – 2483.5 MHz
- Bluetooth transmitter power
- <15 dBm (EIRP)
- Wi-Fi network
- IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)
- 2.4G Wi-Fi transmitter frequency range
- 2412 – 2472 MHz (2.4 GHz ISM Band, USA 11 Channels, Europe and others 13 Channels)
- 2.4G Wi-Fi transmitter power
- < 20 dBm (EIRP)
- 5G Wi-Fi transmitter frequency range
- 5.15 – 5.35GHz, 5.470 – 5.725GHz, 5.725 – 5.825GHz
- 5G Wi-Fi transmitter power
- 5.15 – 5.25GHz <23dBm,
- 5.25 – 5.35GHz & 5.470 – 5.725GHz <20dBm, 5.725 – 5.825GHz <14dBm (EIRP)
- 2.4G wireless transmitter frequency range
- 2406 – 2474MHz
- 2.4G wireless transmitter power
- <10dBm (EIRP)
- Note
- Band 5.6 – 5.64 GHz will be disabled when shipped to Australia / New Zealand.
Video Specifications
- HDMI video input
- 3
- HDMI video output (with Enhanced Audio Return Channel, eARC)
- 1
- HDMI HDCP version
- 2.3
- HDR pass through
- HDR10+, Dolby Vision
